Name of components and information displayed on the screen
Solution

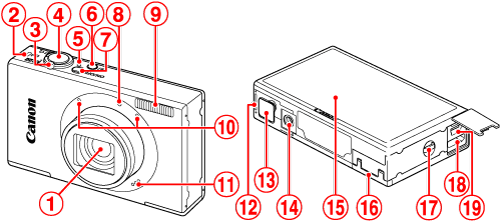

PowerShot ELPH 530 HS / IXUS 510 HS
 | Lens |  | Speaker |
 | Wireless LAN indicator |  | Battery cover |
 | Zoom lever Shooting:  (telephoto) /  (wide angle)Playback:  (magnify) /  (index) |  | DC coupler terminal cover |
 | Shutter button |  | Tripod socket |
 | Indicator |  | Screen (LCD monitor) |
 |  (Playback) button |  | Memory card cover |
 | Power button |  | Strap mount |
 | Lamp |  | HDMITM terminal |
 | Flash |  | AV OUT (Audio/video output) / DIGITAL terminal |
 | Microphone | ||

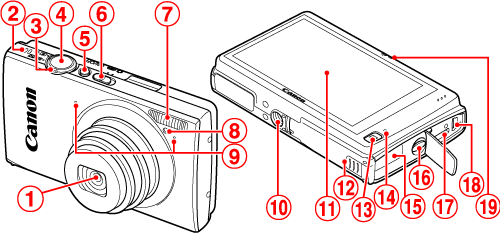

PowerShot ELPH 320 HS / IXUS 240 HS / IXUS 245 HS
| Lens | | Screen (LCD monitor) |
| Speaker | | Memory card/battery cover |
| Zoom lever Shooting: (telephoto) / (wide angle)Playback: (magnify) / (index) | | (Playback) button |
| Shutter button | | Indicator |
| Power button | | DC coupler cable port |
| Mode switch | | Strap mount |
| Flash | | HDMITM terminal |
| Lamp | | AV OUT (Audio/video output) / DIGITAL terminal |
| Microphone | | Wireless LAN indicator |
| Tripod socket | ||

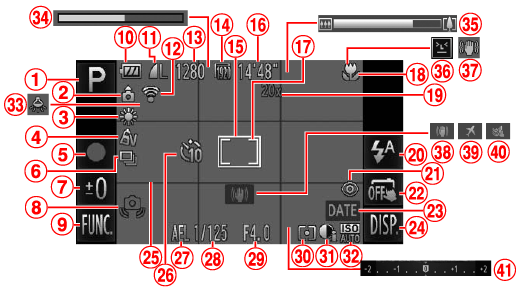

| Shooting mode, Scene icon |  | Touch Shutter |
| Camera orientation* |  | Date stamp |
| White balance |  | DISP. (Display) |
| My Colors |  | Grid lines |
| Movie recording |  | Self-timer |
| Drive mode |  | AE lock, FE lock |
| Long Shutter, Exposure compensation level |  | Shutter speed |
| Camera shake warning |  | Aperture value |
| FUNC. (Function) |  | Metering method |
| Battery level |  | i-Contrast |
| Compression (image quality) / Resolution |  | ISO speed |
| PowerShot ELPH 320 HS / IXUS 240 HS / IXUS 245 HS
Eye-Fi connection status |  | Mercury lamp correction |
| Recordable shots |  | Super slow motion movie (shooting time) |
| Movie quality |  | Zoom bar |
| AF frame |  | Blink detection |
| Remaining time |  | Image stabilization |
| Spot AE point frame |  | Image stabilization |
| Focusing range, AF lock |  | Time zone |
| Digital zoom magnification, Digital tele-converter |  | Wind filter |
 | Flash mode |  | Exposure compensation bar |
 | Red-eye correction | ||
*
: Regular orientation,
: Held vertically
: Regular orientation, : Held verticallyThe camera detects the shooting orientation and adjusts settings for optimal shots.
Orientation is also detected during playback, and in either orientation, the camera automatically rotates images as needed. However, the orientation may not be detected correctly when the camera is pointed straight up or down.

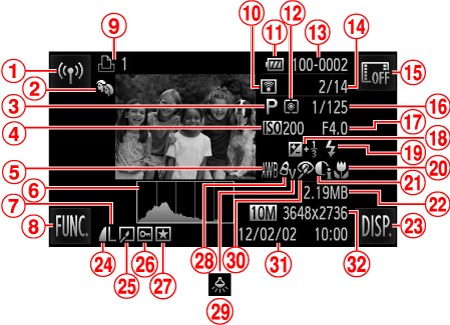

PowerShot ELPH 530 HS / IXUS 510 HS / PowerShot ELPH 320 HS / IXUS 240 HS
| Wireless LAN | | Aperture value, Image quality (movies) |
| My Category | | Exposure compensation level |
| Movies, High-speed burst, Shooting mode | | Flash |
| ISO speed, Playback speed | | Focusing range |
| White balance | | i-Contrast |
| Histogram | | File size |
| Resolution, MOV (movies) | | DISP. (Display) |
| FUNC. (Function) | | Compression ratio (image quality) |
| Print list | | Group playback, Image editing |
| PowerShot ELPH 320 HS / IXUS 240 HS / IXUS 245 HS
Transferred via Eye-Fi | | Protection |
| Battery level | | Favorite |
| Metering method | | My Colors |
| Folder number - File number | | Mercury lamp correction |
| Current image no. / Total no. of images | | Red-eye correction |
| Hide information | | Shooting date/time |
| Shutter speed (still images), Image quality / Frame rate (movies) | | Still images: Resolution Movies: Movie length |

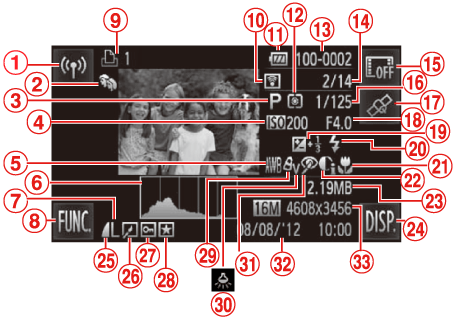

IXUS 245 HS
| Wireless LAN | | Aperture value, Image quality (movies) |
| My Category | | Exposure compensation level |
| Movies, High-speed burst, Shooting mode | | Flash |
| ISO speed, Playback speed | | Focusing range |
| White balance | | i-Contrast |
| Histogram | | File size |
| Resolution, MOV (movies) | | DISP. (Display) |
| FUNC. (Function) | | Compression ratio (image quality) |
| Print list | | Group playback, Image editing |
| Transferred via Eye-Fi | | Protection |
| Battery level | | Favorite |
| Metering method | | My Colors |
| Folder number - File number | | Mercury lamp correction |
| Current image no. / Total no. of images | | Red-eye correction |
| Hide information | | Shooting date/time |
| Shutter speed (still images), Image quality / Frame rate (movies) | | Still images: Resolution Movies: Movie length |
| GPS display |
