Name of components and information displayed on the screen (PowerShot SX230 HS / PowerShot SX220 HS)
Solution
 | Lamp |  | Speaker |
 | Microphone |  | Flash |
 | Lens |  | Tripod Socket |
 | Zoom Lever Shooting :  (Telephoto) /  (Wide
Angle)Playback :  (Magnify) /  (Index) |  | DC Coupler Terminal Cover |
 | Shutter Button |  | Memory Card / Battery Cover |
 | GPS Signal Receiver  |  | Strap Mount |

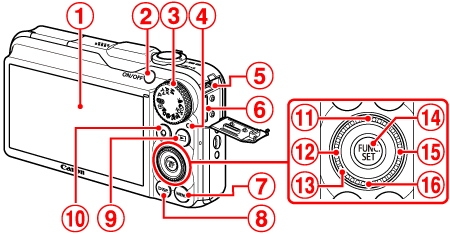

| Screen (LCD Monitor) | |  (Playback) Button ( |
| Power Button | | Movie Button |
| Mode Dial | |  (Exposure Compensation) /  Button |
| Indicator | |  (Macro) / MF (Manual Focus) /  Button |
| A/V OUT (Audio/Video Output) / DIGITAL Terminal |  | Control Dial (see below) |
| HDMI Terminal |  |  FUNC./SET Button |
|  Button |  |  (Flash) /  Button |
|  Button |  |  (Self-Timer) /  Button |

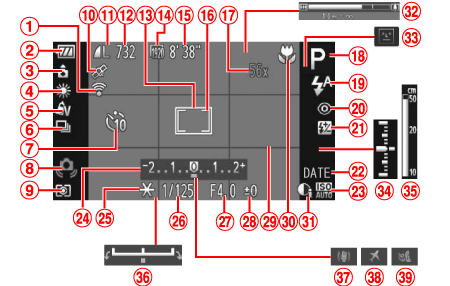

| Eye-Fi Connection Status |  | Flash Exposure Compensation / Flash Output |
| Battery Charge Indicator |  | Date Stamp |
| Camera Orientation* |  | ISO Speed |
| White Balance |  | Exposure Compensation Bar |
| My Colors |  | AE Lock, FE Lock |
| Drive Mode |  | Shutter Speed |
| Self-Timer |  | Aperture Value |
| Camera Shake Warning |  | Exposure Compensation Amount |
| Metering Method |  | Grid Lines |
| GPS Reception Status |  | Focusing Range |
| Compression, Recording Pixels |  | i-Contrast |
| Still Images : Recordable Shots |  | Zoom Bar |
| AF Frame |  | Blink Detection |
| Movies: Recording Pixels |  | Exposure Level |
| Remaining Time |  | MF Indicator |
| Spot AE Point Frame |  | Exposure Shift Bar |
 | Digital Zoom Magnification / Digital Tele-converter |  | Image Stabilizer |
 | Shooting Mode, Scene Icon |  | Time Zone |
 | Flash Mode |  | Wind Filter |
 | Red-Eye Correction | ||
*
: Standard,
: Held vertically
: Standard, : Held verticallyWhen shooting, the camera detects if it is held vertically or horizontally, and adjusts settings accordingly for the best shot. It also detects orientation during playback, so you can hold the camera in either orientation and it will automatically rotate images for correct viewing. This function may not operate correctly when the camera is pointed straight up or down.

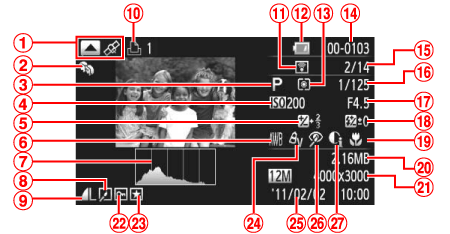

| Switch Display (GPS
Information Display) | | Displayed image number / Total number of images |
| My Category | | Shutter Speed (Still Images), Image Quality/ Frame Rate (Movies) |
| Shooting Mode | | Aperture Value |
| ISO Speed, Playback Speed | | Flash, Flash Exposure Compensation |
| Exposure Compensation Amount, Exposure Shift Amount | | Focusing Range |
| White Balance | | File Size |
| Histogram | | Still Images : Recording Pixels / Movies : Movie Length |
| Group Playback, Image Editing | | Protect |
| Compression (Image Quality) / Recording Pixels, MOV (Movies) | | Favorites |
| Movies, High-speed Burst, Print List | | My Colors |
| Eye-Fi Transfer Complete | | Shooting Date and Time |
| Battery Charge Indicator | | Red-Eye Correction |
| Metering Method | | i-Contrast |
| Folder Number – File Number | ||
