imageFORCE 8100 Series
imageFORCE 8100 Series
Optimised for the large enterprise printing environments
Enterprise-Ready Monochrome Production Printer that delivers high-definition image quality, robust security, and versatile media handling for high-volume print environments—ideal for modern print rooms demanding speed, precision, and reliability.
Key Features
Features
Print & Scan Quality
Equipped with an R-VCSEL laser achieves high-definition image quality with a print resolution of 2,400 x 2,400 dpi.
By adopting a new fixing mechanism and transfer belt system, the paper contact area increased and efficiently conducts heat even on thick media up to 300 gsm. It is now possible to fix onto a variety of media.
Advanced ADF Error Detection: Equipped with Abnormal transport detection which prevents jams from skewed/stapled documents and double feed detection sensor avoids scanning errors.
Design & Usability

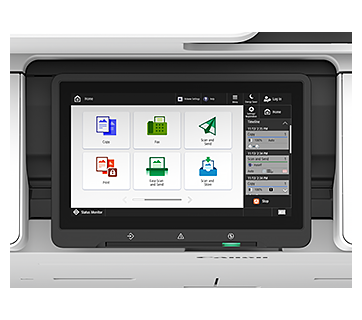

New UI & Design: User-friendly interface with improved visibility and accessibility. The imageFORCE 8100 Series strengthens your printing capability, allowing you to print on envelopes and preprint forms. Offering a choice of large capacity paper feeding to suit your printing production requirements.
Black-colored trays: Easier paper size and quantity checks.
Curved output section: Enhances visibility and ease of paper removal.
Retraction-assisted cassette: Smooth paper loading and replacement.
Effortless Enterprise Security
Easily apply over 80 security settings with one click using Canon’s intelligent environment estimation engine—no IT expertise required.
Integrate uniFLOW Online, enabling seamless workflow across the imageFORCE series and improving overall document management efficiency.
Specifications
imageFORCE 8100 Series
Download Brochure
Main Unit
| Machine Type | A3 Monochrome Laser Multifunctional |
| Core Functions | Print, Copy, Scan, Send, Store and Optional Fax |
| Processor | 1.8 GHz Dual Core Processor |
| Control Panel | 10.1" TFT LCD WSVGA Colour Touch panel |
| Memory | Standard: RAM: 6.5 GB |
| Storage | Standard: (SSD) 512 GB Optional: (SSD) 1 TB |
| Interface Connection |
NETWORK Standard: 1000Base-T/100Base-TX/10Base-T Optional: Wireless LAN (IEEE 802.11a/b/g/n/ac/ax) OTHERS Standard: USB 2.0 (Host) x 1, USB 3.0 (Host) x 1, USB 2.0 (Device) x 1 Optional: Serial Interface, Copy Control Interface |
| Paper Supply Capacity (A4, 80 gsm) |
Standard: 4,360 sheets 250 sheet Multi-purpose tray x 1 1,770 sheet Paper Deck x 2 570 sheet Paper Cassette x 1 Maximum: 9,360 sheets (with Multi-drawer Paper Deck-E1) |
| Paper Output Capacity (A4, 80 gsm) |
Standard: 250 Sheets Maximum: 5,000 Sheets (with Booklet Finisher-AG1) |
| Finishing Capabilities*1 |
Collate, Group, Offset, Staple, Saddle Stitch, Hole Punch, Eco
Staple, Staple On Demand, Document Insertion, Z-fold, Half-fold,
C-fold, Accordion-Z fold, Double Parallel-fold, Trimming |
| Supported Media Types |
Multi-purpose Tray: Thin, Plain, Recycled, Colour, Heavy, Coated, Bond, Transparency, Label, Pre-punched, Letterhead, Tab, Envelope, Film, Textured, Tracing Paper Decks (Right/Left): Thin, Plain, Recycled, Colour, Heavy, Bond, Pre-punched, Letterhead Paper Cassette: Thin, Plain, Recycled, Colour, Heavy, Bond, Transparency, Pre-punched, Letterhead, Tab*2, Envelope*3 |
| Supported Media Sizes |
Multi-purpose Tray: Standard size: SRA3, A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R Custom size: 90.0 x 148.0 mm to 330.2 x 487.7 mm Free size: 98.0 x 148.0 mm to 330.2 x 487.7 mm Long sheet*4: 210.0 x 487.8 mm to 330.2 mm x 1,300.0 mm Envelopes: COM10 No.10, Monarch, DL, ISO-C5 Envelope custom size: 90.0 x 148.0 mm to 330.2 x 487.7 mm Paper Decks (Right/Left): Standard size: A4, B5 Paper Cassette: Standard size: SRA3, A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R Custom size: 98.0 x 148.0 mm to 330.2 x 487.7 mm Envelopes*3: COM10 No.10, Monarch, ISO-C5, DL Envelope custom size: 90.0 x 148.0 mm to 330.2 x 487.7 mm |
| Supported Media Weights |
Multi-purpose Tray: 52 to 300 gsm Paper Decks (Right/Left): 52 to 220 gsm Paper Cassette: 52 to 300 gsm Duplex: 52 to 300 gsm |
| Warm-up Time |
Quick Startup Mode: 4 seconds or less*5 From Power On: 120 seconds or less*6 From Sleep Mode: 120 seconds or less |
| Dimensions (W x D x H) | 964 x 868 x 1,185 mm |
| Installation Space (W x D) |
Basic: 1,762 x 1,409 mm (with multi-purpose tray opened + paper
cassette opened + copy tray) Fully Configured: 5,786 x 1,436 mm (Document Insertion Unit-R1 + Paper Folding Unit-K2 + Booklet Finisher-AG1 front cover opened + Booklet Trimmer-G1 + Multi-drawer Paper Deck-E1 + Finisher Long Sheet Catch Tray-B1) |
|
Weight*7 |
Approx. 267 kg |
| Print Speed |
imageFORCE 8105:
1-sided: Up to 105 ppm (A4, A5R), Up to 76 ppm (A4R), Up to 53 ppm (A3) 2-sided: Up to 105 ppm (A4, A5R), Up to 76 ppm (A4R), Up to 53 ppm (A3) imageFORCE 8195: 1-sided: Up to 95 ppm (A4, A5R), Up to 69 ppm (A4R), Up to 48 ppm (A3) 2-sided: Up to 95 ppm (A4, A5R), Up to 69 ppm (A4R), Up to 48 ppm (A3) imageFORCE 8186: 1-sided: Up to 86 ppm (A4, A5R), Up to 62 ppm (A4R), Up to 44 ppm (A3) 2-sided: Up to 86 ppm (A4, A5R), Up to 62 ppm (A4R), Up to 44 ppm (A3) |
| Print Resolution (dpi) | 2,400 x 2,400 |
| Page Description Languages |
Standard: UFR II Optional: PCL6/PCL5, Adobe® PostScript®3™ |
| Direct Print | Supported file types: PDF, EPS, TIFF/JPEG, and XPS |
| Printing from Mobile and Cloud |
AirPrint, Mopria, IPP Everywhere, Canon PRINT, uniFLOW Online,
Universal Print and Cloud Connector
A range of software and MEAP-based solutions are available to provide printing from mobile devices or internet-connected devices and cloud-based services depending on your requirements. Please contact your sales representative for further information. |
| OS Standard Printing | Android/Windows® 10/Windows® 11/Chrome OS/macOS (11.2.2 or later) /iOS (15.2 or later)/iPadOS |
| Fonts |
PS fonts: 136 Roman
PCL fonts: 93 Roman, 10 Bitmap fonts, 2 OCR fonts, Andalé Mono WT J/K/S/T*8 (Japanese, Korean, Simplified and Traditional Chinese), Barcode fonts*9 |
| Print Features | Secured Print, Secure Watermark, Header/Footer, Page Layout, Two-sided Printing, Mixed Paper Sizes/Orientations, Front/Back Covers, Toner Reduction, Poster Printing, Forced Hold printing, Print Date, Scheduled Printing, Printing Using a Virtual Printer |
| Operating System |
UFRII: Windows® 10/11/Server2016/Server2019/Server2022/Server2025,
macOS (10.14 or later)
PCL: Windows® 10/11/Server2016/Server2019/Server2022/Server2025 PS: Windows® 10/11/Server2016/Server2019/Server2022/Server2025, macOS (10.14 or later) PPD: Windows® 10/11, macOS (10.15 or later) |
Copy
| Copy Speed |
imageFORCE 8105: 1-sided: Up to 105 ppm (A4, A5R), Up to 76 ppm (A4R), Up to 53 ppm (A3) 2-sided: Up to 105 ppm (A4, A5R), Up to 76 ppm (A4R), Up to 53 ppm (A3) imageFORCE 8195: 1-sided: Up to 95 ppm (A4, A5R), Up to 69 ppm (A4R), Up to 48 ppm (A3) 2-sided: Up to 95 ppm (A4, A5R), Up to 69 ppm (A4R), Up to 48 ppm (A3) imageFORCE 8186: 1-sided: Up to 86 ppm (A4, A5R), Up to 62 ppm (A4R), Up to 44 ppm (A3) 2-sided: Up to 86 ppm (A4, A5R), Up to 62 ppm (A4R), Up to 44 ppm (A3) |
| First-Copy-Out Time (A4) |
imageFORCE 8105/8195: Approx. 4.9 seconds or less imageFORCE 8186: Approx. 5.6 seconds or less |
| Copy Resolution (dpi) | 600 x 600 |
| Multiple Copies | Up to 9,999 copies |
| Copy Density | Automatic or Manual (9 Levels) |
| Magnification | Variable zoom: 25% to 400% (1% Increments) |
| Copy Features | Preset R/E Ratios by Area, Two-Sided, Density Adjustment, Original Type Selection, Interrupt Mode, Book to Two Pages, Two-sided Original, Job Build, N on 1, Add Cover, Insert Sheets, Different Size Originals, Page Numbering, Copy Set Numbering, Sharpness, Erase Frame, Secure Watermark, Print Date, Gutter, Print & Check, Negative/Positive, Repeat Images, Merge Job Blocks, Mirror Image, Store in Mail Box, Superimpose Image, Copy ID Card, Skip Blank Pages, Free Size Original, Reserved copy, Copy Sample |
Scan
| Type | Single-pass Duplexing Automatic Document Feeder [2-sided to 2-sided (Automatic)]*10 |
| Document Feeder Paper Capacity (80 gsm) | Up to 200 Sheets |
| Document Feeder Acceptable Paper Weight |
Document Feeder media weight*11: 1-sided scanning: 38 to 220 gsm (BW, CL) 2-sided scanning: 38 to 220 gsm (BW, CL) |
| Supported Media Sizes |
Platen scanning size: Up to 297.0 x 431.8 mm Document Feeder media size: A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R, B6R, Custom size: 69.9 x 139.7 mm to 304.8 x 431.8 mm |
| Scan Speed (ipm: A4) |
1-sided Scanning: 135/135 (300 x 300 dpi, send), 135/80 (600 x 600
dpi, copy) 2-sided Scanning: 270/270 (300 x 300 dpi, send), 165/90 (600 x 600 dpi, copy) |
| Scan Resolution (dpi) | 600 x 600 |
| Pull Scan Specifications |
Colour Network ScanGear2 for both TWAIN and WIA Supported OS: Windows® 10/11/Server 2016/Server 2019/Server 2022/Server 2025 |
| Scan Method | Push Scan, Pull Scan, Scan to Box, Scan to Advanced Box, Scan to Network, Scan to USB Memory Key, Scan to Mobile devices, Scan to cloud (uniFLOW Online) |
Send
| Destination |
Standard: E-mail/Internet FAX (SMTP*12), SMB, FTP, WebDAV, Mail Box Optional: Super G3 FAX, IP Fax |
| Address Book | LDAP (2,000)/Local (1,600)/Speed dial (200) |
| Communication Protocol |
File: FTP (TCP/IP), SMB3.1.1 (TCP/IP), WebDAV E-mail/I-Fax: SMTP, POP3 |
| File Format | TIFF (MMR), JPEG, PDF (Compact, Searchable, Optimise for Web, PDF/A-1b, Trace & Smooth, Encrypted, Device Signature, User Signature), XPS (Compact, Searchable, Device Signature, User Signature), Office Open XML (PowerPoint, Word) |
| Universal Send Features | Original Type Selection, Two-sided Original, Book to Two Pages, Different-size Originals, Density Adjustment, Sharpness, Copy Ratio, Erase Frame, Job Build, Delayed Send, Preview, Job Done Notice, File Name, Subject/Message, Reply-to, E-mail Priority, TX Report, Original Content Orientation, Skip Blank Pages |
Fax
| Maximum Number of Connection Lines | 2 |
| Modem Speed | Super G3: 33.6 kbps G3: 14.4 kbps |
| Compression Method | MH, MR, MMR, JBIG |
| Resolution (dpi) | 400 x 400 (Ultra Fine), 200 x 400 (Super Fine), 200 x 200 (Fine), 200 x 100 (Normal) |
| Sending/Receiving Size |
Sending: A3, A4, A4R, A5*13, A5R*13,
A6R*13, B4, B5*14, B5R*13 Receiving: A3, A4, A4R, A5, A5R, B4, B5, B5R |
| FAX Memory | Up to 30,000 pages (2,000 jobs) |
| Speed Dials | Max. 200 |
| Group Dials/Destinations | Max. 199 dials |
| Sequential Broadcast | Max. 256 addresses |
| Memory Backup | Yes |
| Fax Features | Sender's Name (TTI), Selecting the Telephone Line (when sending fax), Direct Send, Delayed Send, Preview, Job Done Notice, TX Report, Interrupt Transmission, Sequential Broadcasting, Password/Subaddress Sending, Confidential Mailbox, 2 on 1 Log |
Store
| Mail Box (Number Supported) |
100 User Inboxes 1 Memory RX Inbox 50 Confidential Fax Inboxes Maximum 30,000 Pages (2,000 jobs) Stored |
| Advanced Box |
Communication Protocol: SMB or WebDAV Supported Client PC: Windows® 10/11 Concurrent Connections (Max.): SMB: 64, WebDAV: 3 |
| Advanced Box Available Disc Space | Standard: 16 GB (With option: max. 480 GB) |
| Advanced Box Features | Authentication for Advanced Box Log-in, Sort Function, Printing a PDF File with a Password, Search, File Preview, Authentication Management, Open to public, URI TX, Backup/Restore |
Security
| Authentication and Access Control | User Authentication (Picture Login, Picture and PIN Login, Card Login, Username and Password Login, Function Level Login, Mobile Login), Department ID Authentication (Department ID and PIN Login, Function Level Login), uniFLOW Online/uniFLOW*15(PIN Login, Picture Login, Picture and PIN Login, Card Login, Card and PIN Login, Username and Password Login, Department ID and PIN Login, Function Level Login), Microsoft Entra ID Authentication (Password Login, Card Login), Two-Factor Authentication at LUI/RUI, Access Management System (Access Control) |
| Document Security | Print Security (Secure Print, Encrypted Secure Print, Forced Hold Printing, uniFLOW Secure Print*15), Receive Data Security (Confidential Fax Inbox Forwarding Received Documents Automatically), Scan Security (Encrypted PDF, Device Signature PDF/XPS, User Signature PDF/XPS), BOX Security (Mail Box Password Protected, Advanced Box Access Control), Send Data Security (Setting for requesting password input per transmission, Restricted E-mail/File send functions, Confirming FAX number, Allow/Restrict Fax Driver Transmissions, Allow/Restrict Sending from History, S/MIME Support), Secure Watermark |
| Network Security | TLS 1.3 (FIPS140-3), IPSec (FIPS140-3), IEEE802.1X authentication, SNMPv3, Firewall Functionality (IP/MAC Address Filtering), Dual Network Support (Wired LAN/Wireless LAN, Wired LAN/Wired LAN), WPA3 support (Wi-Fi), Enabling/Disabling (Network Applications, Remote UI, USB Interface), G3 FAX separation from LAN, USB Port separation from LAN, Prohibit the execution of files stored in Advanced Box in the MFP, Scan and Send -Virus Concerns for E-mail Reception |
| Device Security | Protecting SSD Data [SSD Data Encryption (FIPS140-3), SSD Lock], Standard SSD Initialize, Initialize (NIST 800-88 PURGE LEVEL), Trusted Platform Module (TPM 2.0), Job Log Conceal Function, Protecting MFP Software Integrity: Verify System at Startup (NIST SP800-193: Protection), Checking MFP Software Integrity & Platform Firmware Resiliency: Automatic System Recovery (NIST SP800-193: Recovery), Runtime Intrusion Detection: Trellix Embedded Control, HCD-PP Common Criteria Certification (Validation Pending) |
| Device Management and Auditing | Administrator Password, Digital Certificate and Key Management, SAN certificates, Audit Log, Cooperating with External Security Audit System (Security Information and Event Management), Image Data Logging, Security Policy Setting |
Environmental
| Operating Environment |
Temperature: 10 to 30 ºC Humidity: 20 to 80 % RH (Relative Humidity) |
| Power Source | 220-240 V, 50/60 Hz, 13 A |
| Power Consumption |
Maximum: Approx. 3,120 W Sleep mode: Approx. 0.9 W*16 |
Consumables
| Toner Cartridges | NPG-1005 Toner BK |
| Toner Yield (Estimated @ 6% Coverage) | 90,500 pages |
Software and Printer Management
| Tracking and Reporting | uniFLOW Online |
| Remote Management Tools |
iW Enterprise Management Console Remote Distribution & Management Service Monitoring Service |
| Scanning Software | Colour Network ScanGear 2 |
| Optimisation Tools | Canon Driver Configuration Tool |
| Platform | MEAP (Multifunctional Embedded Application Platform) |
Paper Supply Options
| Paper Deck Unit-E1 |
Paper Capacity: 3,660 sheets (80 gsm) Paper Type: Thin, Plain, Recycled, Colour, Heavy, Bond, Pre-punched, Letterhead Paper Size: A4, B5 Paper Weight: 52 to 256 gsm |
| POD Deck Lite-C1 |
Paper Capacity: 3,660 sheets (80 gsm) Paper Type: Thin, Plain, Recycled, Colour, Heavy, Coated, Textured, Tracing, Bond, Transparency, Label, Pre-punched, Letterhead, Tab, Envelope*17 Paper Size: SRA3, A3, A4, A4R, A5R, B4, B5, B5R, COM10 No.10, Monarch, ISO-C5, DL Custom size: 139.7 x 148.0 mm to 330.2 x 487.7 mm Paper Weight: 52 to 300 gsm |
| Multi-drawer Paper Deck-E1 |
Paper Capacity: 5,000 (Upper/Middle: 1,500, Lower: 2,000) sheets (80
gsm) Paper Type: Thin, Plain, Recycled, Colour, Heavy, Coated, Textured, Tracing, Bond, Transparency, Label, Pre-punched, Letterhead, Tab, Envelope*18 Paper Size: SRA3, A3, A4, A4R, A5R, B4, B5, B5R, COM10 No.10, Monarch, ISO-C5, DL Custom size: 139.7 x 182.0 mm to 330.2 x 487.7 mm Paper Weight: 52 to 300 gsm |
Output Options*19
| Copy Tray-R2 |
Capacity: 250 sheets (80 gsm)
Paper Weight: 52 to 300 gsm |
| Staple Finisher-AC1*20 |
Tray Capacity (with 80 gsm paper): Upper Tray: A4, A5, A5R, A6R, B5: 250 sheets SRA3, A3, A4R, B4, B5R: 125 sheets Envelopes: 30 sheets Mid Tray: Same as upper tray Lower Tray: A4, A5, A5R, B5: 3,000 sheets SRA3, A3, A4R, B4, B5R: 1,500 sheets A6R: 250 sheets Envelopes: Monarch: 30 sheets, COM10 No.10,DL, ISO-C5: 100 sheets Long Sheet: Length up to 762.0 mm: 50 sheets*21 Length up to 1,300.0 mm: 1 sheet Paper Weight: Upper Tray: 52 to 256 gsm Mid Tray: Same as upper tray Lower Tray: 52 to 300 gsm Staple Position: Corner, Double Staple Capacity: A4, B5: 65 sheets (52 to 90 gsm) A3, A4R, B4: 40 sheets (52 to 90 gsm) Eco Staple: A3, A4: 10 sheets (52 to 64 gsm) 8 sheets (65 to 81.4 gsm) 6 sheets (81.5 to 105 gsm) Staple On Demand: 65 sheets (52 to 90 gsm) |
|
Booklet Finisher-AC2*20 |
(Includes the above Staple Finisher-AC1 basic staple
specifications) Saddle Stitch Paper Size: A3, A4R, B4, Custom size (195.0 x 270.0 mm to 304.8 x 457.2 mm) Saddle Stitch Staple Capacity: 20 sheets x 10 sets (52 to 81.4 gsm) (including 1 cover sheet 52 to 256 gsm) Non Staple Folded Bunch Capacity: Up to 5 sheets (52 to 105 gsm) |
| Staple Finisher-AG1 |
Tray Capacity (with 80 gsm paper): Upper Tray: SRA3, A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R: 1,000 sheets Z-Fold: A3, B4: 30 sheets Half-fold: A4R: 50 sheets Envelope: 150 sheets Long sheet: Length up to 762.0 mm: 300 sheets*22/50 sheets*21 Length up to 1,300.0 mm: 10 sheets*22 Lower Tray: If [High-Volume Stack Mode] is set to [On]: A4, B5: 4,000 sheets A4R, B5R: 2,000 sheets A3, B4: 1,500 sheets SRA3: 1,000 sheets If [High-Volume Stack Mode] is set to [Off]: A4, B5: 2,000 sheets SRA3, A3, A4R, B4, B5R: 1,000 sheets Z-Fold: A3, B4: 30 sheets Paper Weight: 52 to 300 gsm Staple Position: Corner, Double Staple Capacity: A4, B5: 100 sheets (52 to 80 gsm) A3, A4R, B4, B5R: 50 sheets (52 to 81.4 gsm) |
| Booklet Finisher-AG1 |
(Includes the above Staple Finisher-AG1 basic staple
specifications) Saddle Stitch Paper Size: SRA3, A3, A4R, B4, Custom size (210.0 x 279.4 mm to 330.2 x 487.7 mm) Saddle Stitch Staple Capacity: 25 sheets (52 to 80 gsm) [including 1 cover sheet up to 300 gsm] Non Staple Folded Bunch Capacity: Up to 5 sheets (52 to 209 gsm) |
| Staple Finisher-AQ1 | Tray Capacity (with 80 gsm paper): Upper Tray: A4, A5, A5R, A6R, B5: 250 sheets SRA3, A3, A4R, B4, B5R: 125 sheets Envelope: 30 sheets Z-Fold: A3, A4R, B4: 30 sheets Half-fold: A4R: 30 sheets Lower Tray: If [High-Volume Stack Mode] is set to [On]: A4, B5, A5, A5R: 4,000 sheets A4R, B5R: 2,000 sheets SRA3, A3, B4: 1,500 sheets A6R: 1,000 sheets If [High-Volume Stack Mode] is set to [Off]: A4, B5: 2,000 sheets A5, A5R: 1,500 sheets SRA3, A3, A4R, A6R, B4, B5R: 1,000 sheets Envelope: 150 sheets Z-Fold: A3, B4: 30 sheets A4R: 15 sheets Half-Fold: A4R: 50 sheets Long sheet: Length up to 762.0 mm: 100 sheets*23 Length up to 1,300.0 mm: 1 sheet*24 Paper Weight: Upper Tray: 64 to 300 gsm Lower Tray: 52 to 300 gsm Staple Position: Corner, Double Staple Capacity: A4, B5: 100 sheets (52 to 90 gsm) SRA3, A3, A4R, B4, B5R: 65 sheets (52 to 90 gsm) |
| Booklet Finisher-AQ1 | (Includes the above Staple Finisher-AQ1 basic specifications) Saddle Stitch Paper Size: SRA3, A3, A4R, B4, Custom size (210.0 x 279.4 mm to 330.2 x 487.7 mm) Saddle Stitch Staple Capacity: 20 sheets (60 to 81.4 gsm) (including 1 cover sheet 60 to 300 gsm) Non Staple Folded Bunch Capacity: 5 sheets (60 to 105 gsm) |
| 2/4 Hole Puncher Unit-A1 |
(Requires either the Staple Finisher-AC1 or Booklet Finisher-AC2) Two or Four Holes Acceptable Punch Paper Weight: 52 to 300 gsm Acceptable Punch Paper Size: Two holes: A3, A4, A4R, A5, B4, B5, B5R Four holes: A3, A4 |
| Puncher Unit-BS1 |
(Requires Booklet Finisher-AG1) Two or Three Holes Acceptable Punch Paper Weight: 52 to 300 gsm Acceptable Punch Paper Size: Two holes: Custom size (182.0 x 257.0 mm to 203.0 x 270.0 mm, 204.0 x 182.0 mm to 297.0 x 432.0 mm) Three holes: Custom size (240.0 x 182.0 mm to 297.0 x 432.0 mm) |
| Puncher Unit-BT1 |
(Requires Booklet Finisher-AG1) Two or Four Holes Acceptable Punch Paper Weight: 52 to 300 gsm Acceptable Punch Paper Size: Two holes: A3, A4, A4R, A5, B4, B5, B5R, Custom size (182.0 x 257.0 mm to 203.0 x 270.0 mm, 204.0 x 182.0 mm to 297.0 x 432.0 mm) Four holes: A3, A4, B4, B5, Custom size (257.0 x 182.0 mm to 297.0 x 432.0 mm) |
| Puncher Unit-BU1 |
(Requires Booklet Finisher-AG1) Four Holes Acceptable Punch Paper Weight: 52 to 300 gsm Acceptable Punch Paper Size: Four holes: A3, A4, A5, B4, B5, Custom size (257.0 x 182.0 mm to 297.0 x 432.0 mm) |
| Puncher Unit-BY1 | (Requires either the Staple Finisher-AQ1 or Booklet Finisher-AQ1) Two or Three Holes Acceptable Punch Paper Weight: 52 to 300 gsm Acceptable Punch Paper Size: Two holes: A3, A4, A4R, A5*25, B4, B5, B5R Three holes: A3, A4, B4, B5 |
| Puncher Unit-BZ1 | (Requires either the Staple Finisher-AQ1 or Booklet Finisher-AQ1) Two or Four Holes Acceptable Punch Paper Weight: 52 to 300 gsm Acceptable Punch Paper Size: Two holes: A3, A4, A4R, A5*25, B4, B5, B5R Four holes: A3, A4, B4, B5 |
| Puncher Unit-CA1 | (Requires either the Staple Finisher-AQ1 or Booklet Finisher-AQ1) Four Holes Acceptable Punch Paper Weight: 52 to 300 gsm Acceptable Punch Paper Size: Four holes: A3, A4, A4R, A5, B4, B5, B5R |
| Inner Booklet Trimmer-A1 | (Requires Booklet Finisher-AQ1) Acceptable Paper Weight: 60 to 300 gsm Acceptable Paper Size: SRA3, A3, A4R, B4, Custom size (210.0 x 279.4 mm to 330.2 x 487.7 mm) Trim Amount: 2 to 20 mm Waste Tray Capacity: Approx. 1,500 sheets (80 gsm) |
| Booklet Trimmer-G1 |
(Requires Booklet Finisher-AG1) Booklet Capacity: 10 booklets (booklet size: A4, 50 sheets, 80 gsm) Acceptable Paper Weight: 52 to 300 gsm Acceptable Paper Size: SRA3, A3, A4R, B4, Custom size: 210.0 x 279.4 mm to 330.2 x 487.7 mm Trim Amount: 2 to 28 mm Trimming Capacity: Up to 25 sheets (50 sheets by Half-Fold) (52 to 80 gsm) Waste Tray Capacity: Approx. 5,000 Sheets (80 gsm) |
| Document Insertion Unit-R1 |
(Requires any of the following: Booklet Finisher-AG1) Number of Trays: 2 Tray Capacity (with 80 gsm paper): Upper tray: 200 sheets Lower tray: 200 sheets Acceptable Paper Type: Thin, Plain, Recycled, Colour, Heavy, Coated, Tracing, Textured, Bond, Pre-punched, Letterhead, Tab Acceptable Paper Size: SRA3, A3, A4, A4R, B4, B5, B5R, Custom size: 182.0 x 182.0 mm to 330.2 x 487.7 mm Acceptable Paper Weight: 52 to 300 gsm |
| Paper Folding Unit-K2 |
(Requires any of the following: Booklet Finisher-AG1) Supported Folding Type: Z-Fold, C-Fold, Accordion Z-Fold, Double Parallel-Fold, Half-Fold Acceptable Paper Type: Thin, Plain, Recycled, Colour, Bond, Coated, Textured Acceptable Paper Sizes: Z-Fold: A3, A4R, B4 C-Fold, Accordion Z-Fold, Double-Parallel Fold, Half-Fold: A4R Acceptable Paper Weight: Z-Fold, C-Fold, Accordion Z-Fold, Half-Fold: 52 to 105 gsm Double Parallel Fold: 52 to 90 gsm Output Capacity (with 80 gsm paper): Z-Fold, Half-Fold: Depends on the specifications of the finisher C-Fold, Accordion Z-Fold: Approx. 40 sheets Double Parallel-Fold: Approx. 25 sheets |
- Finishing capabilities vary depending on the options connected.
- Tab Feeding Attachment-F1 (standard) is required.
- Envelope Feeder Attachment Kit (standard) is required.
- Long Sheet Tray-B1 is required.
- Time from device power-on to when the copy icon appears and is enabled to operate on the touch panel display.
- Time from device power on, until copy is ready (not print reservation).
- Including regular toner.
- Optional PCL International Font Set-A1 is required.
- Optional Barcode Printing Kit-D1 is required.
- Multi-Sheet Feed Detection is supported.
- An acceptable weight of A6R or smaller is 50 to 220 gsm.
- Available OAuth 2.0 authentication method on Microsoft 365 and Google Workspace.
- Sent as A4.
- Sent as B4 short.
- Optional.
- 0.9 W is not available in all circumstances due to certain settings.
- Envelope Feeder Attachment-G1 is required.
- Envelope Feeder Attachment-H1 is required.
- Paper capacity may vary with different paper type/size.
- Only available for imageFORCE 8186.
- Long Sheet Tray-B1 or Long Sheet Tray-C1 is required.
- Finisher Long Sheet Catch Tray-B1 is required.
- Long Sheet Tray-C1 is required.
- Holding by hand.
- Booklet Finisher-AQ1 only.
